Dressing device for brake dressing

for diamond and CBN grinding wheels

High-quality dressing device for dressing all types of diamond and CBN grinding wheels, regardless of their bond systems.

Dessing and sharpening tools
Dessing and sharpening tools
Material-independent
Material-independent
Gentle dressing process
Reduced wear
Dealer Search

Variants

· 2 Type numbers

Specification

Description

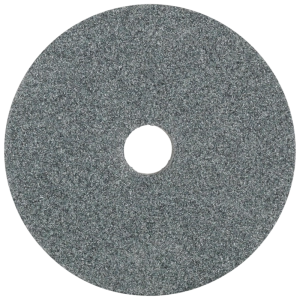

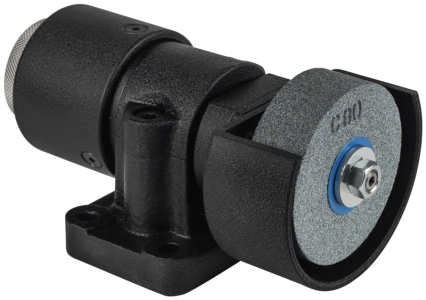

These dressing wheels are used for dressing all types of diamond and CBN grinding wheels, regardless of their bond systems. The AV500 dressing device is ideally suited to dressing resin and metal-bonded wheels during dry grinding. The silicon carbide wheels are available in a 75 mm diameter. Use the 1C70M5V15 specification for robust layers only.

Technical Data

Abrasive grain
Conventional (A+C)
Tool for
Dessing and sharpening tools
Materials
Material-independent

Features

  • Gentle dressing process—The specially selected combination of grit size and bond hardness enables a gentle dressing process to be achieved for diamond and CBN wheels.
  • Reduced wear—The 1C70M5V15 specification is recommended for wider, robust layers, as the high level of bond hardness minimises wear.

Application

Application

  • 1

    The dressing wheels are suitable for dressing all types of diamond and CBN grinding wheels, regardless of their bond systems

  • 2

    The AV 500 dressing device is particularly suitable for dressing resin and metal-bonded wheels in dry grinding applications
