Bench grinding wheels conventional ceramics

for high-alloyed steels and HSS

Cooler finish
Smooth running

Developed for:

Suitable for:

Product variants

Shape
Dimensions
Specification

Shape
Type number
Dimensions
Mounting
Specification
Delivery unit

2697
150 x 20 x 32
89A46M5AV217
1

413774
150 x 20 x 20
89A60L5AV217 /40
1

2699
150 x 20 x 32
89A60M5AV217
1

103872
150 x 20 x 16
89A60M5AV55 /40
1

664052
150 x 13 x 25
89A80M5AV217 /40
1

16022
175 x 25 x 32
89A60M5AV217
1

723118
175 x 25 x 51
89A60M5AV217
1

918448
175 x 32 x 32
89A80M5AV217
1

377415
175 x 25 x 51
89A80M5AV217
1

502206
180 x 6 x 31,75
89A100K5AV217
1

146630
200 x 25 x 32
89A46K5AV217
1

50184
200 x 25 x 51
89A46M5AV217
1

99864
200 x 32 x 51
89A46M5AV217
1

3142
200 x 20 x 32
89A46M5AV217
1

3220
200 x 25 x 32
89A46M5AV217
1

3222
200 x 25 x 32
89A60K5AV217
1

34046791
200 x 32 x 40
89A60L5AV217
1

3224
200 x 25 x 32
89A60M5AV217
1

723117
200 x 32 x 51
89A60M5AV217
1

184247
200 x 20 x 20
89A60M5AV55 /40
1

7374
200 x 25 x 32
89A80L5AV217
1

78379
200 x 32 x 51
89A80M5AV217
1

831179
250 x 25 x 32
89A60M5AV217 /40
1

126665
250 x 32 x 32
89A80M5AV217 /40
1

30840
300 x 40 x 76
89A60M5AV217
1

Product information

Description

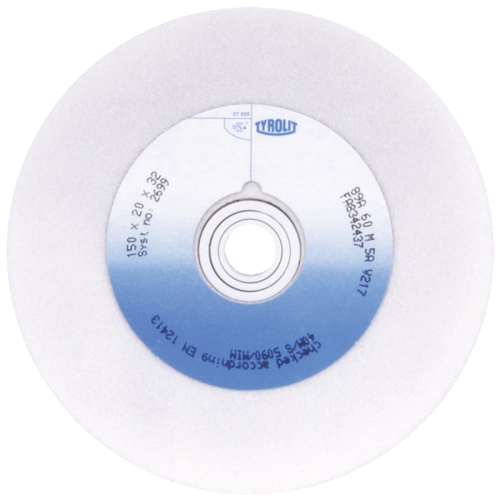

This wheel is preferable for grinding and sharpening temperature-sensitive steels and HSS tools. The use of aluminium oxide results in particularly cool grinding so that the workpiece is not subjected to additional thermal load. We offer a wide spectrum of dimensions to cover the most common applications. A reduction bush set is included in the packaging or can be reordered.

Features

Cool grinding:
Use of aluminium oxide to keep the thermal load on the workpiece low.
Extremely smooth running:
The all-round machined surfaces achieve excellent running precision and a low level of unbalance.
