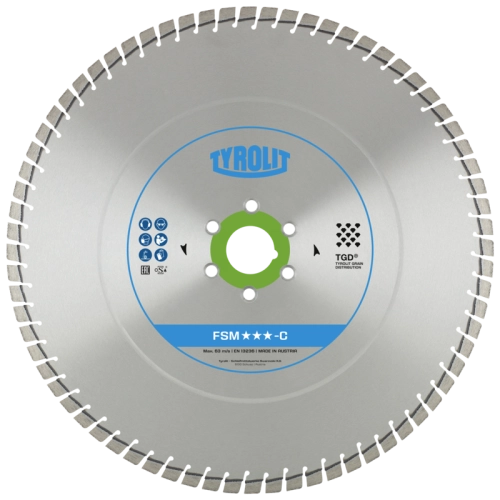

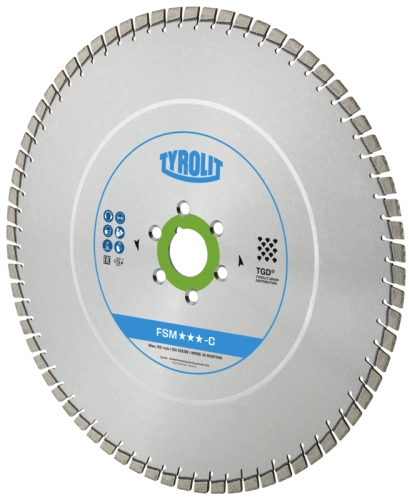

FSM-C Floor saw blade

for cured concrete | in TGD® Technology

For machines up to 25 kW – laser-welded segments up to Ø 1 200 mm with special protective shape for maximum performance and minimal wear.

Floor saw
Floor saw
Concrete
Concrete
TGD®
TGD®
Consistently fast cutting performance and noticeably smooth running thanks to optimised grain distribution
Excellent cutting performance thanks to a system specially tailored to the application and power class
20 mm segment length; special segment form with protective function against premature wear of the core blade in the connection zone (undercutting-effect)
Dealer Search

Variants

· 22 Type numbers

Specification

Description

Machines up to 25 kW | hydraulic drives up to 50 kW | soft to very hard aggregates. Details: Laser welded up to a diameter of 1 200 mm. Special segment shape with a protective function to guard against premature steel blade wear in the contact zone – (undercutting-effect).

Technical Data

Abrasive grain
Diamond (D)
Tool for
Floor saw
Materials
Concrete

Features

  • Short tooth technology for optimum cutting and very straight cuts with smooth running when cutting quartz and free cutting in TGD® segment design
  • Excellent cutting performance thanks to self-sharpening system made of high-quality, concentrated diamond grains in optimal bonding
  • Maximum cost-effectiveness and unrivalled results thanks to maximum cutting performance and longest service life
  • Robust, high-quality steel cores with special rear perforation ensure stability and noticeably smooth running
  • Diameter range 350 to 1 200 mm (1 600 mm) laser-welded

Application

Application

  • 1

    Machines up to 25 kW

  • 2

    Soft to hard concrete aggregates

Recommendations

  • More powerful floor saws 25 kW to 50 kW
  • Ideally suited for medium-hard to very hard concrete
  • Ideally suited for medium-hard to very hard concrete; well suited for soft concrete
  • Peripheral speed for cured concrete with soft aggregates and little reinforcement 40-50 m/s; for cured concrete with hard aggregates 35-45 m/s
