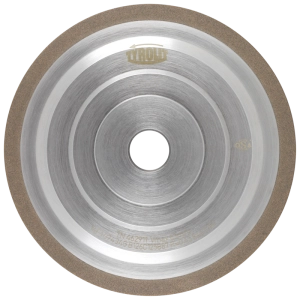

Resin-bonded CBN grinding wheels for tooth form grinding

for HSS

High chipping
High profile retention
Especially for wet grinding

Developed for:

Suitable for:

Product variants

Shape
Dimensions
Specification

Shape
Type number
Dimensions
Mounting
Specification
Delivery unit

14F1

462924
200 x 8 x 32
1,3 - 8,4 R0,65
44B 126 C125 B 87 ST
1

462928
200 x 8 x 32
2 - 8,4 R1
44B 126 C125 B 87 ST
1

454693
200 x 8 x 32
1,6 - 8,4 R0,8
44B 126 C125 B 87 ST
1

Product information

Description

This Tyrolit product is suitable both for repair and production grinding and offers high stock removal rates on HSS. The CBN tool for tooth profile grinding has been specially designed for wet grinding with emulsion and oil. The CBN tools are available for all standard sharpening machines in 150 - 200 mm diameters.

Features

High chipping rate:
Thanks to coarser grains, tailored to the profile and layer thickness, this wheel can achieve the required high level of chipping even for new toothing.
High profile retention:
By using a high concentration of exceptional CBN qualities a high profile lifetime is achieved.
For wet grinding:
Specially designed for wet grinding, for emulsion and oil.
